Upgrading BIOS and BMC for Gen4 Appliances

Overview

This topic describes how to upgrade the BIOS and the BMC firmware (IPMI) on Gen4 Tufin appliances (T-800 and T-1200) using the Supermicro Update Manager (SUM) tool and the Remote Management Module (RMM) interface. The procedure applies to all deployment types, including single-node, Remote Collector (RC), and high availability (HA) environments.

Prerequisites

Before you begin, confirm the following:

The appliance is running TOS R25-2 or later.
TufinOS version 4.50 or later is installed.
The appliance’s RMM interface is accessible. If RMM is not configured, follow the RMM setup guide.
You have root access to the appliance.

Preparing the appliance

Use this section to prepare your Gen4 appliance for the upgrade. These steps apply to single-node, RC, and HA deployments.

Determine the deployment type:
- Single node or RC cluster: Requires downtime.
- HA cluster or worker node: No downtime.
Run the following command to confirm that the appliance is Gen4 (T-800 or T-1200):
```
dmidecode -s chassis-version
```
Log in to the RMM interface at https://<RMM IP>.
Go to the System page and verify that the BIOS and BMC versions are lower than the target versions:
- BIOS Version: 4.3
- Firmware Revision: 01.74.14
If the system is already running these versions, the upgrade is not required.
Prepare the node for maintenance. For HA or RC clusters, follow the Cluster Node Maintenance procedure.
If the system is a single-node or RC deployment, disable k3s:
```
systemctl disable k3s.service
```

Preparing upgrade files and tools

Follow these steps to upgrade the BIOS and the BMC firmware.

Download the required files from the Download center:
- BIOS_X11DPU-091C_20240305_4.3_STD.zip
- BMC_X11AST2500-4101MS_20231130_01.74.14_STDsp.zip
- sum_x.xx.x_Linux_x86_64_xxx.tar.gz
Extract the BIOS and the BMC/IPMI .bin files locally.

Transfer and extract the SUM tool to the appliance:

Copy the archive:

scp sum_x.xx.x_Linux_x86_64_xxx.tar.gz tufin-admin@<appliance-ip>:/opt/misc/

Connect to the appliance using SSH and switch to the root user:
```
ssh tufin-admin@<appliance-ip>
sudo su -
```

Extract the archive:

cd /opt/misc/
tar xvzf sum_x.xx.x_Linux_x86_64_xxx.tar.gz

Make SUM executable:

cd sum_x.xx.x_Linux_x86_64/
chmod 0700 ./sum

Backing up BIOS and BMC configuration

BIOS and BMC upgrades do not affect hard drives or TOS data. However, you must complete a TOS backup before beginning. See Backup and Restore.

Back up the current BIOS and BMC configurations using the SUM tool.

Back up the BIOS configuration:

./sum -c GetCurrentBiosCfg --file bios-config-before-upgrade.txt

Back up the BMC configuration:

./sum -c GetBmcCfg --file bmc-config-before-upgrade.txt

(Optional) Back up TOS using the CLI. This is strongly recommended for single-node or non-HA deployments.

Upgrading BIOS using RMM

Use the RMM interface to upgrade the BIOS firmware.

Do not interrupt the upgrade. This can corrupt the firmware and require an RMA (return merchandise authorization).

Log in to the RMM interface at https://<RMM IP>.
Go to Maintenance > BIOS Update.

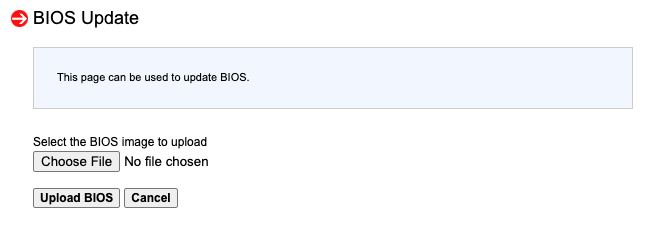

Click Choose File, select the BIOS .bin file, and click Upload BIOS. Wait for the upload to complete.

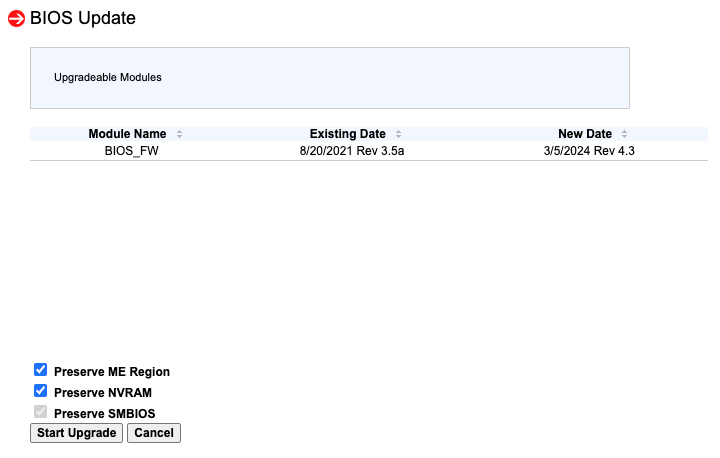

Select the following options:
- Preserve ME Region
- Preserve NVRAM
- Preserve SMBIOS
Click Start Upgrade and wait for completion. The system may reboot automatically.

Upgrading BMC firmware using RMM

Use the same RMM interface to install the BMC firmware.

Go to Maintenance > Firmware Update and click Enter Update Mode.

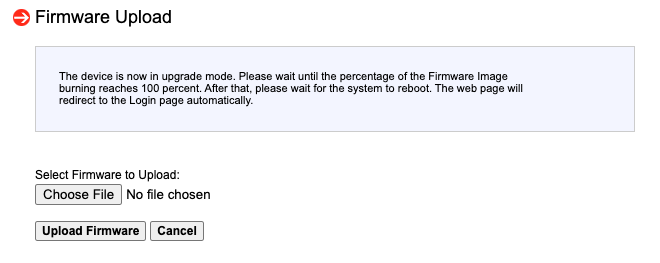

Click Choose File, select the BMC .bin file, and click Upload Firmware. Wait for the upload to complete.

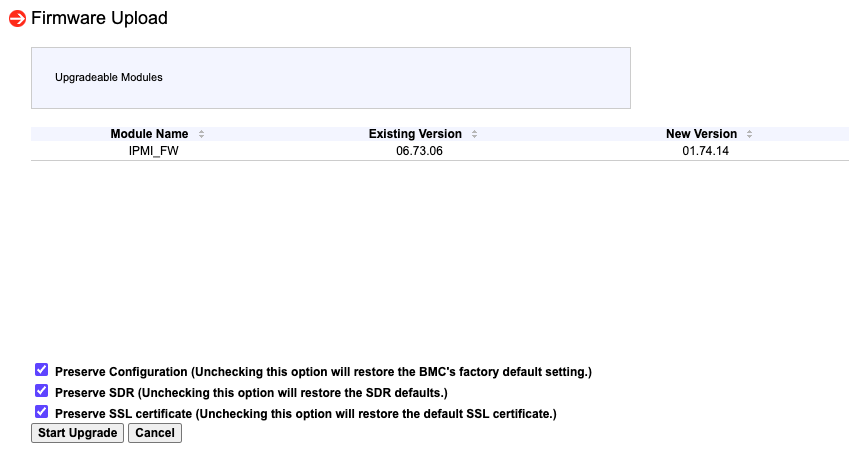

Select the following options:
- Preserve Configuration: Keeps current BMC settings.
- Preserve SDR: Retains current sensor definitions.
- Preserve SSL certificate: Keeps the current certificate.
Click Start Upgrade. The system should reboot automatically.

If the appliance does not reboot, go to Remote Control > Power Control in RMM and select Power Cycle Server.

Verifying and restoring after upgrade

After the upgrade, restore your configuration, reboot the appliance, and restart services.

Log in to the appliance.
Go to the extracted SUM directory.

Run the following to save the new post-upgrade configurations:

./sum -c GetCurrentBiosCfg --file bios-config-after-upgrade.txt
./sum -c GetBmcCfg --file bmc-config-after-upgrade.txt

Restore the previous BIOS and firmware configuration:
```
./sum -c ChangeBiosCfg --file bios-config-before-upgrade.txt
./sum -c SetBmcCfg --file bmc-config-before-upgrade.txt
```
--skip_unknown and --skip_duplication_check handle any deprecated or duplicate settings.
Power off the appliance:
```
poweroff
```

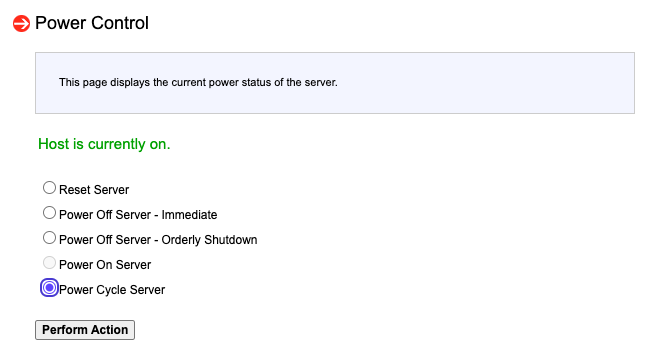

In the RMM interface, go to Remote Control > Power Control and select Power Cycle Server.
Click Perform Action and wait for the server to reboot.
Verify that the appliance boots successfully.
Confirm in the RMM's System window that the BIOS and the BMC versions were upgraded successfully.
If you disabled k3s earlier (for single node or RC deployments) , re-enable and restart services:
1. Enable k3s to start at boot:
```
systemctl enable k3s.service
```
2. Start k3s service now:
```
systemctl start k3s.service
```
3. Verify that k3s is active:
```
systemctl status k3s.service
```
4. Start TOS:
```
tos start
```

Troubleshooting

Use these tips to resolve common upgrade issues.

If the BIOS or BMC file upload fails, retry the process in the RMM interface.
If the upgrade is blocked, confirm that the appliance model and TufinOS version meet the supported requirements.
If the BIOS or BMC version does not update, verify that you used the correct .bin files and selected the appropriate preserve options.
If the appliance becomes unresponsive or RMM is unavailable, wait and retry. If needed, reboot using Power Control in RMM.
Contact Tufin Support if the issue persists.
