Configuring iDRAC for Remote Access

After you connect your appliance to the network, we recommend that you also configure Integrated Dell Remote Access Controller (iDRAC).

iDRAC is a remote server management controller that allows you to securely access your Tufin appliance from any location. It enables you to upgrade TufinOS or TOS on the appliance without having to physically access the server as well as deploy, manage, configure, and troubleshoot from any location.

Supported versions

T-820 and T-1220: iDRAC9.

For the Dell iDRAC user guide, see iDRAC 9 User's guide.

For required ports and service, see iDRAC9 Security Configuration Guide.
T-900 and T-1300: iDRAC10

For the Dell iDRAC user guide, see iDRAC10 User's Guide.

For required ports and services, see the iDRAC10 Security Configuration Guide.

Set up iDRAC

See the Dell iDRAC user guide for required ports and services.

In your browser, navigate to the IP address you defined for iDRAC connectivity .

The start-up screen displays.
Enter your credentials.
In the Domain field, select This iDRAC.

Log in.

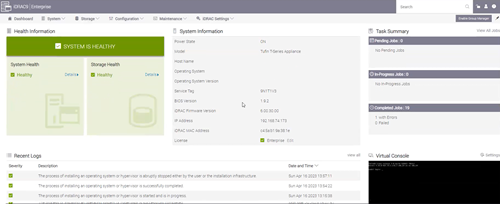

The iDRAC interface is displayed.

Use the iDRAC interface to:

Monitor the health of your system
Access your appliance's Virtual Console.

You can now use the Virtual Console to access your Tufin appliance from any location.
