Advanced Change Report

Overview

The Advanced Change report enables you to examine, in detail, the policy changes of selected devices. You can run this report in two different ways:

Incremental: Lists the differences between each individual revision with its predecessor.
Accumulated: Lists the differences between the latest and initial revisions.

For Check Point devices, if multiple policy packages are used for different gateways, you can select packages per Installation Target group. The report will contain a section for each selected package.

SecureTrack generates the report in both HTML and PDF formats.

Create an Advanced Change Report

Click New Report.

The report configuration wizard has three parts.
General Criteria:
1. For Report Type, select Advanced Change.
2. You can change the Title. By default, the report name is the Report Type with the current date.
3. In a Multi-Domain environment, select the Domains that contain the devices on which you want to run the report.
4. Select Devices for the report.
  - If you selected one domain, you can limit the report to include specific devices in the domain.
  - If you selected more than one domain, then Any is selected for Devices, and all devices in the selected domains are included in the report.
5. For Check Point devices, if you have selected one device, you can limit the report to include specific Policy Packages. If you have selected more than one device, then Any is selected for Policy Packages and all policy packages in the selected devices are included in the report.
6. Click Next.

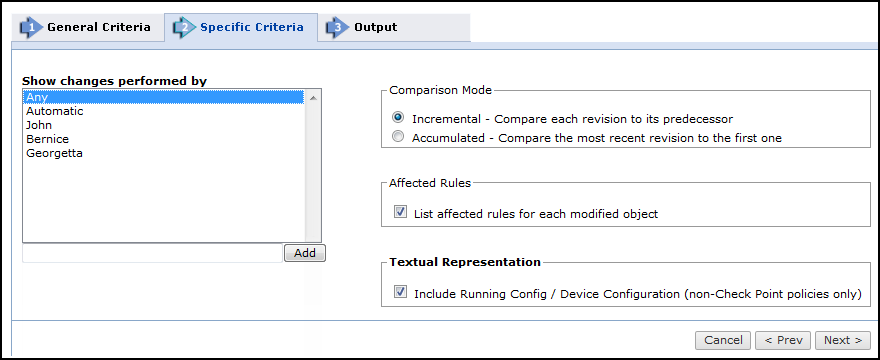

Specific Criteria:

Configure as required:

Parameter	Description
Show changes performed by	You can limit the report to changes performed by specific people, by selecting their names or select Any to list all changes. You can add someone by entering the name in the text box below the list and clicking Add.
Comparison Mode	Incremental: Each revision is compared to the previous revision. Accumulated: Only the most recent revision is compared, to the earliest revision in SecureTrack's database.

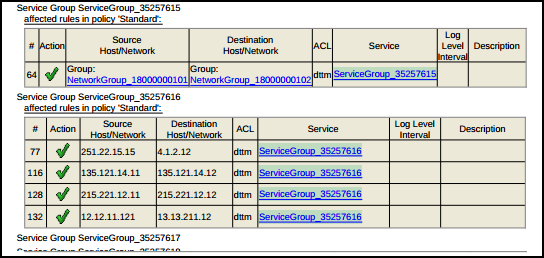

Affected Rules	Select List affected rules for each modified object to have the report list rules that are affected by objects reported as changed.
Textual Representation	Select Include Running Config / Device Configuration to include policy textual representation. Not relevant to Check Point policies.

Click Next.

Output:

For this report, note that Send on Event is disabled.

Configure the fields:

Parameter	Description
Send on Event	Select the events to trigger this report. You can use the <shift> key to select more than one event. Select one of the following, to decide whether to always run the report after the event, even when there are no changes: Only when the policy was modified: Only if there are changes to be reported on, relative to the previous revision. Even if the policy was not modified: If there are no changes, the report will state that there were no changes. For example, if an administrator first saves a Check Point policy, and then installs the policy on a gateway a few minutes later, the second event has not modified the policy.
Delivery	The report can be delivered in any of the following three ways: Send report by email: The report is generated for each of the selected Recipients and emailed to them. The emailed report's formatting (embedded HTML, MHT attachment or PDF attachment) is globally configurable for all users. Export report: This option is available only to SecureTrackAdministrators, and only when enabled in the Reports page.A report is generated according to the owner's configured preferences and permissions, and exported according to the configuration in the Reports page. To be notified when a report is generated, select Email me when exported. Save report in Repository: The report is saved and users can later view it by selecting the Reports Repository tab (in Report view). Select Email a link to have a link to the report sent to recipients when a report is generated, provided the recipient's email is configured.
Periodic Scheduling	Defines a recurring schedule for report generation. The report can be generated on a daily, weekly, or monthly basis.Reporting Period controls how far back the report will span from the time of generation.
Recipients	Recipients: The SecureTrack users who receive the report (or a link or notification). When a SecureTrackUser creates a report, only that User is a recipient. When a SecureTrack Administrator creates a report, multiple recipients can be defined. These Recipients are SecureTrack Administrators or Users whose email addresses have been configured in SecureTrack. Other email addresses can be defined, separated by semicolons ( ; ) in the Additional Email Recipients text box. Notes: SecureTrack does not send the report if a specified recipient does not have permission for a device or Domain included in the report configuration when the report is generated. In a Multi-Domain environment, administrators (Super and Multi-Domain) can only add users who have permissions for the current Global or Domain context.
Additional Email Recipients	Enter additional email recipient addresses. Separate the addresses with a semicolon (;). Note: SecureTrack does not send the report if a specified recipient does not have permission for a device or Domain included in the report configuration when the report is generated.
Email Subject	You can click the field buttons to add the fields to the subject line of the email notifications. Report Fields: You can include the name of the report and the time that the report was generated. Revision Fields: When the report is configured to Send on Event, you can include the name of the device, the revision number, the action that triggered the notification, the name of the administrator who did the action, and the ticket ID associated with the change in the new revision.
Advance Settings	Privacy Hide administrator details: The report does not include the names of users that made changes to policies or the name of the report creator. Display Settings Show textual configuration (Cisco only) (when ticket ID recognition is configured): If selected, the rule Name and Comment fields are removed from the report results. Only the ticket ID is included. This is useful if ticket comments contain confidential information that should not be sent to report recipients, such as administrator details. Object definitions Groups and members: The report includes the definitions of group objects and their member objects. This is useful for recipients that do not have SecureTrack access. SecureTrack users can click group objects in the report to see the definitions. Non-group objects: The report includes definitions of non-group objects.

Click Save.

The saved report appears in the General Reports list from which you can Run (), Edit (), or Delete () it.

Generate Report Results

This procedure is not applicable to PCI DSS Reports.

Select General Reports.
A list of configured reports available for the connected user appears. Each line in the table displays basic information for one report: the report's title, type, relevant devices, recipients and scheduling.
Click for the report.
Configure the following.
- Report Period: The time period for the report.
  - Preset: Select a preset period from the list.
  - Custom: Complete the fields that determine the custom period.
- Output options: Determines the report display and how it should be saved:
  - Display the result in the browser: View the result now, as either HTML or a PDF.
  - Save report in repository and email me a link: You can review report results, which are saved in the repository, at any time using the link in an email message.
Click Run Report.

The report is generated.

How Do I Get Here?

SecureTrack > Reports > General Reports
