Adding Generic Route-Based VPN Connections

Overview

TOS enables you to extend the SecureTrack topology model by adding or removing generic route based VPN connections.

Add Generic Route-Based VPN Connections

1. Right-click a non-generic device and select Show route-based VPNs.



2. Click Add Generic VPN.

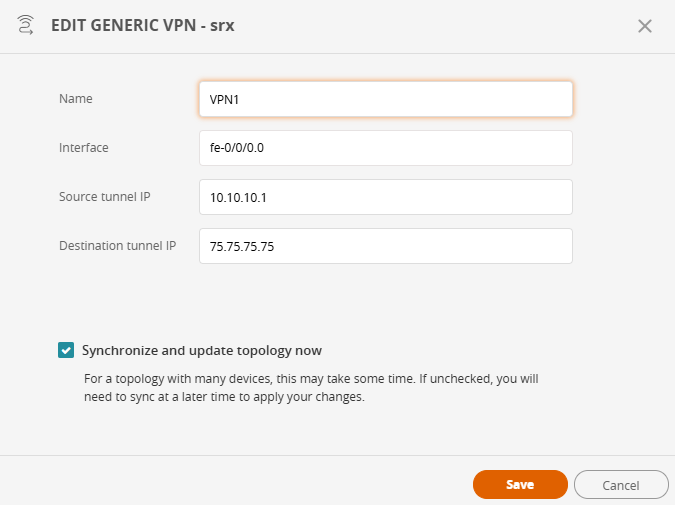

3. Enter the following information:

   • VPN name: Name of the VPN connection.

   • Interface name: Name of the interface on the device.

   • Source tunnel IP: Source IP address for the IPsec packet header. The source tunnel IP does not have be the same as the IP address of Interface name.

   • Destination tunnel IP: Destination IP address for the IP.

4. Click Add Generic vpn and if required enter additional interfaces.
5. Once all the interfaces have been entered, click Save to add the VPN to the device.

Use APIs for Generic Route-Based VPN Connections

• Add generic route-based VPN

• Update generic route-based VPN

• Delete a generic route-based VPN

• Delete generic route-based VPNs

How Do I Get Here?

SecureTrack > Map
