Monitoring Arista VeloCloud

Overview

Add VeloCloud Orchestrator to TOS using the Open Policy Model (OPM). OPM expands device coverage in TOS to additional vendors, by providing device connectors to collect the device's configuration and policy data and import it into SecureTrack.

The Arista device connectors support onboarding VeloCloud Orchestrator using HTTPS API and token-based authentication. SecureTrack pulls topology and rule data based on the sync schedule set in Tufin-Integrations.

For supported features, see Features by Vendor in SecureTrack and Features by Vendor in SecureChange.

Prerequisites

• VeloCloud Orchestrator only: HTTPS API access with token-based authentication

• API token for TOS user account in VeloCloud, generated as described in Configure User Account Details.

• Customer Portal access to download the OPM package

• Admin credentials for SecureTrack and SecureChange to be defined through Tufin Integrations before configuring device sync

• TOS server:

  • sudo permissions to run the installer

  • File upload permissions to /opt/misc

• On systems with non-Tufin OS, python3 and bzip2 packages installed

Install the OPM package

Install the OPM package from the shell on the TOS server. The steps are identical for both new installations and upgrades.

1. Go to the Download center.

2. Select Arista VeloCloud.

3. Click Download to Computer.

4. Upload the downloaded file to /opt/misc (recommended) on the TOS server:

   sh <package-name>

   where:

   <package-name> is the name of the package you downloaded in the format install-<vendor>-1.0.0.aur.run

5. Wait for the installation to complete. The installer installs PS Proxy and Tufin Integrations if they don't exist. If an older version is installed, the script upgrades it.

Add an Arista VeloCloud device

Add a VeloCloud SD-WAN Orchestrator to TOS.

1. In SecureTrack, go to Monitoring > Devices > Device Viewer.

2. Click Add Device, and then select Add OPM Device.

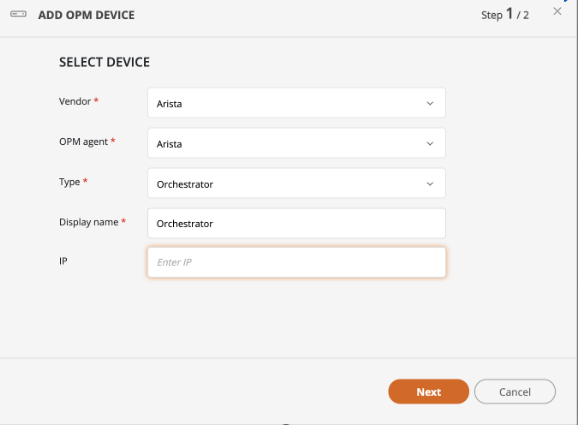

3. In the ADD OPM DEVICE define the device details:



   • Vendor: The vendor with the device to add, Arista in this case.

   • OPM agent: Select Arista VeloCloud. The agent is displayed only if it was installed successfully.

   • Type: Select Orchestrator.

   • Display name: The name to display for this device in SecureTrack

   • IP: The IP address of the device. For SaaS-based management platforms that use an FQDN or hostname instead of an IP address, leave this field empty, and enter the FQDN or hostname in the FQDN field in step 5.

4. Click Next.The Configure Device properties form is displayed.

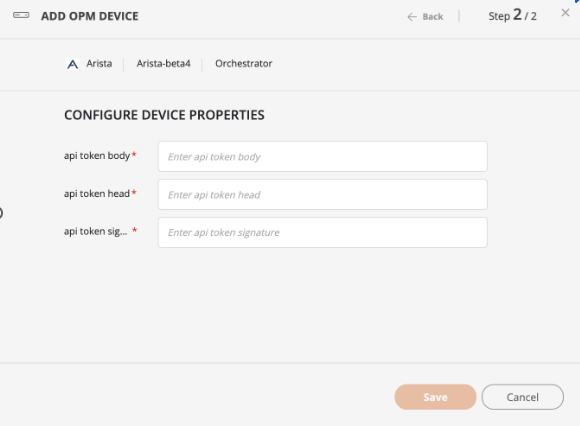

5. Configure the device properties by optionally defining the FQDN, and pasting the correct part of the API token into each field below:



   • FQDN: The FQDN or hostname for SaaS-based management platforms, instead of an IP address. Otherwise, leave this field empty and enter the IP address in the IP field in step 3.

   • API token head: The first part of the API token, without the period.

   • API token body: The second part of the API token, without the period.

   • API token signature: The last part of the API token.

6. To confirm settings and add the device, click Save.

Sync device with SecureTrack

Use Tufin Integrations to configure how SecureTrack syncs with your OPM-managed device. Tufin Integrations is the web interface for managing OPM devices. It is automatically installed when installing the OPM package if it does not exist.

• Configuring SecureTrack to sync with your OPM-managed device includes:

• Defining user credential for SecureTrack and SecureChange

• Importing devices and assigning them to a cluster

• Scheduling sync and reviewing run details

When configuration is complete, SecureTrack runs a script that connects to the device, retrieves configuration data (such as interfaces, routes, and rules), and imports the data. This process enables scheduled or manual data collection.

Step 1: Go to Tufin Integrations

• Do one of the following:

  • Go to https://<tos-vip>/apps/integrations.

  • In SecureTrack , from the list of Tufin Extensions , select Tufin Integrations.



Step 2: Set user credentials for Tufin API

For API configuration, define the username and password to connect to SecureTrack and SecureChange. If the credentials are not defined, Tufin Integrations cannot retrieve the devices.

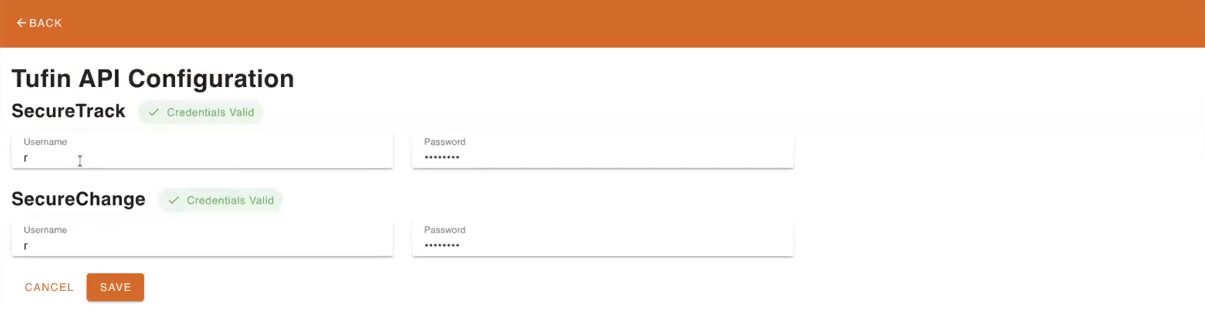

1. From the sidebar, select Settings > Tufin API Configuration.

   OR

   Go to https://<tos-vip>/apps/integrations/configuration/tufin-api.

2. Define the username and password credentials for SecureTrack and SecureChange.



3. Click Save.

   Credentials are automatically validated.

4. Verify that Credentials Valid appears next to SecureTrack and SecureChange, indicating that the credentials are correct.



5. If Credentials Invalid appears, correct the credentials, save, and validate again.

Step 3: Select OPM vendor and import devices

Run discovery to import the devices for vendors.

1. Return to the Dashboard.

2. Below OPM Device Connectors, select the OPM client or vendor with the devices to monitor.

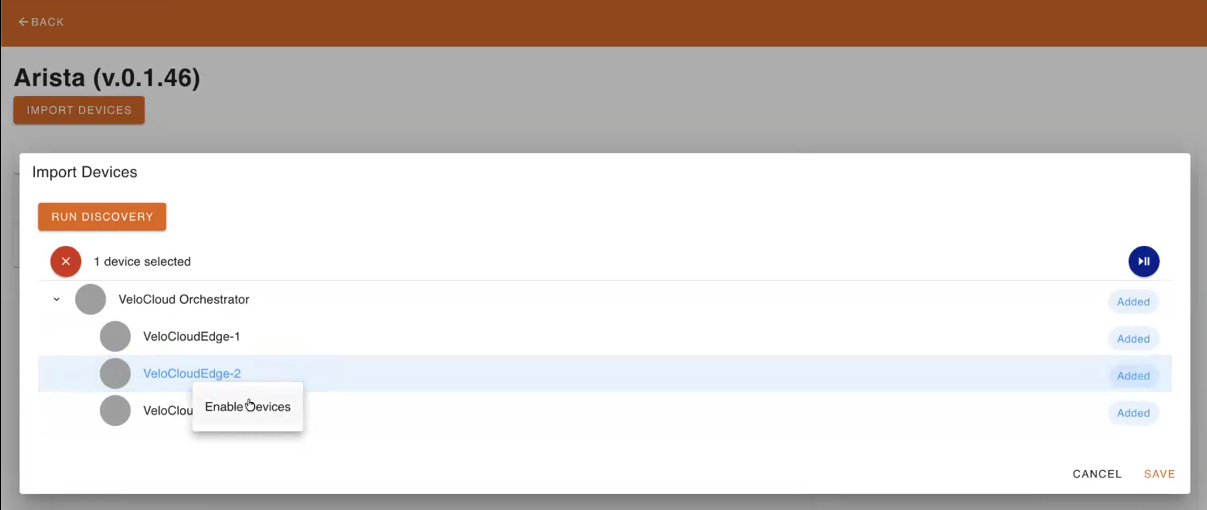

3. Click IMPORT DEVICES and then click RUN DISCOVERY.

   The available devices are displayed.

4. Select the parent management device, or select a specific device.

5. Right-click and select Enable Devices.



6. Click Save.

   The enabled devices are added to the vendor list.

Step 4: Activate device monitoring and configure monitoring options

Activate monitoring for devices, and assign them to the current cluster or to a different cluster. In multi-domain deployments, you can migrate devices to different SecureTrack domains.

You can assign devices to different TOS clusters for monitoring. For example, you can monitor one OPM device from the main cluster and another from a remote collector. Remote collectors are available only if they are configured in TOS.

Migrating the device to a new domain, automatically removes the device from reports, queries, audits and alerts configured in the previous domain.

• Retains device permissions for administrators of the target domain, but removes device permissions from users.

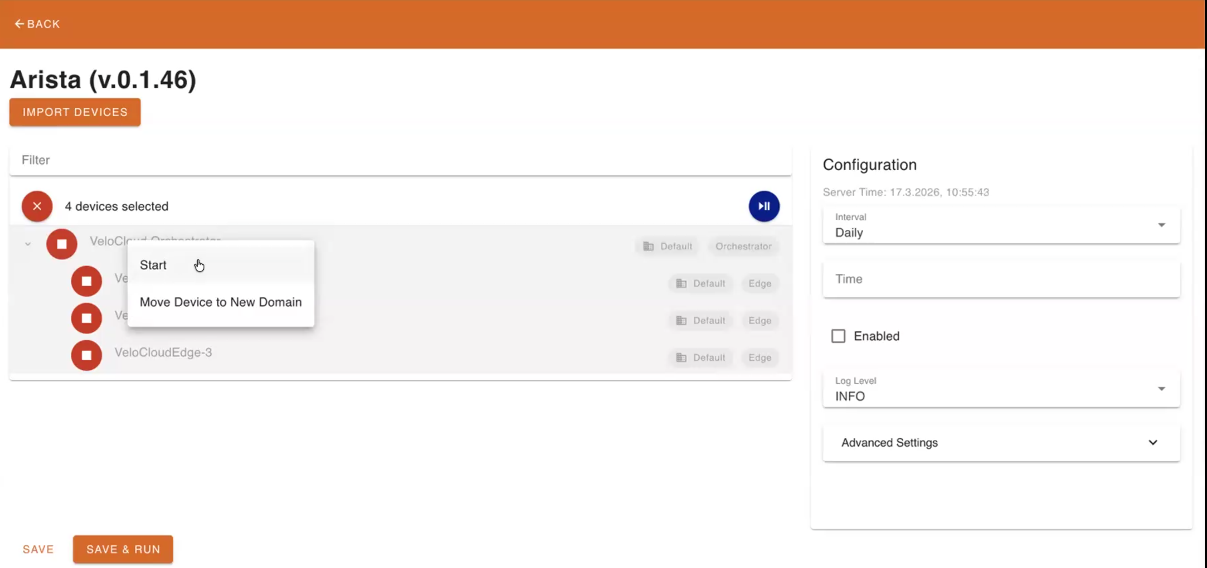

1. Select one or more devices.

2. Right-click the device or devices and select Start to start monitoring them.



3. Optional. To move the selected devices to a new domain, right-click and select Move Device to New Domain.

4. Optional. To monitor the selected devices from a different cluster, right-click and select one of the following:

   • Migrate to main: Monitor the device from the primary cluster.

   • Migrate to <remote_collector>: Monitor the device from a remote collector, for example, RC4.  Available only if a remote collector is configured in TOS. The actual name of the remote collector differs by environment.

Step 5: Set automated sync schedule and view run details

Schedule automated syncs or trigger a manual sync on demand when monitoring is enabled for the device. View per-device status, start/end time, and message after each agent run.

1. In the Configuration section, set the automated sync schedule:



   1. Set Interval as hourly, daily, weekly, or monthly.

   2. Choose the Time or Day of execution.

   3. To enable the script, select Enabled.

   4. Click Save.

2. To start collecting revisions immediately, click RUN.

   If not triggered manually, the sync is triggered as scheduled.
   Every script execution retrieves the configuration from all devices assigned to the vendor’s OPM agent.

3. Verify the results in the Run Details popup:

   In the Device Connector Runs (last 10) table, in the Run Details column, click the blue information icon .

   The popup shows the status, start and end time, and a message for each device in the run.

Below is an example of the device connector page for Huawei, with the device list, Configuration panel, and Device Connector Runs.

Delete child devices

OPM management platforms can delete child devices through Tufin Integrations.

1. In SecureTrack , from the list of Tufin Extensions , select Tufin Integrations.

2. From the list of devices, select one or more devices to delete.

3. Right-click and select Delete Child Device.



   The Delete Child Devices page opens.

4. Do one of the following:

   • To select all child devices, select the parent device.

   • To select specific child devices, select the devices.

5. In the confirmation field, to enable the Delete button, type delete.

6. Click Delete.

How do I get here?

SecureTrack > Monitoring > Devices > Device Viewer
