Using Search

Rule Lifecycle Management App (RLM) includes a powerful search feature, which is especially useful when you have a large amount of data. This feature allows you to filter information and is incorporated into the Pending and My Queue windows.

Use the Search Feature

  1. Click in the Search box. A list of possible search parameters appears depending on the current window. For a complete listing, see Field Names.

  2. Select a parameter and type a value between the single quotes.

  3. You can press Enter to search or add additional parameters.

Supported Operators

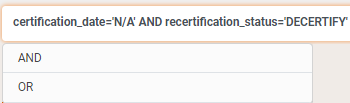

You can use AND or OR operators to combine parameters and narrow the search results. The AND and OR operators have the same precedence, and are parsed from left to right.

  • AND: Combine parameters in the search query.

  • OR: Search for one of the parameters in the search query.

Field Names

The field names that can be used in the query are specific to the window and appear when you click the search bar.

Field Name Description Values /
Format
acl_name ACL name for Cisco devices String
applications.name Applications included in the rule.

String *
business_owner_email Email address for the business owner. String
business_owner_name Name of the business owner. String
certification_date Date when the rule was certified. String
certification_expiration_date Date when the rule will finish. String
certification_status Status for the rule certification. String
comment Comment for the rule. String

description

Description for the rule.

String

destinations.data

Data about the service.

String

destinations.name

IP address of the destination.

String

device.domain_name

Domain name

String

device.name

Device name.

String

device.parent_name

Name of the device's parent (if the device has a parent, such as with Palo Alto devices).

String

expire_date

Date on which the rule will expire.

String

from_zone.name

Source zone for the rule.

String

install_on

Device name on which the rule is installed.

String

last_hit

Last date that the rule hit.

String

last_modified

Last date that the rule was modified.

String

logged

Rule is logged.

Enabled/Disabled

owners.name

Name of the owner.

String

permissiveness

Permissiveness level.

HIGH, LOW, MEDIUM

policy_name

Name of the policy.

String

recert_ticket.scw_ticket_id

Rule status.

String

recertification.status

Status for the recertification process (see Tracking Implementation Progress)

Possible values:

  • Certify

  • Certified

  • Decertify

  • Decertified

  • Device Inactive

  • Disable

  • Disabled

  • Error

  • Modify

  • Modified

  • Partial

  • Processing

  • Waiting

rule_name

Name of the rule.

String

rule_number

Number of the rule.

String

services.data

Data about the service. If the service is a group, the data includes all of the group's protocols and ports. The user can search for these protocols and ports inside the service.

String

services.name

Service name.

String *

sources.data

Data about the assets in the source.

String

sources.name

IP address of the source.

String

tech_owner

Technical owner for the rule.

String

to_zone.name

Destination zone for the rule.

String
