Mapping Rule Owners using CSV

Overview

RLM supports multiple methods to assign owners to assets and rules. To assign owners in bulk, use the CSV import feature.

Using CSV import, you can import and assign:

  • Assets to owners, responsible for certifying individual objects within a rule.

  • Rules to owners, responsible for a rule in its entirety. Rule Owners are viewed and managed in the Manual Assignments page.

You can import Asset Owners, Rule Owners, or both in the same file.

For more information about mapping Rule Owners to rules, see Mapping Assets to Rule Owners.

CSV Field Definitions

The CSV file must include the following column headers.

CSV Field

Description

owner

Required.

The SecureChange username or group name. The value must be identical to an existing user or group. Otherwise, RLM rejects the file.

asset_name

Applicable to RLM only.

The custom metadata field used to display mappings in the mapping table on the Owners page.
Any value in asset_name replaces the asset values listed in the same CSV row.

Example:
If asset_name is Intranet IP Addresses, and asset_values defines three subnets, in the Owners mapping table, the Owner appears as assigned to Intranet IP Addresses.
Clicking or hovering over the asset name shows the three subnets.

asset_values

The value to map to the asset_name, and can be any of the following:

  • IP address

  • CIDR block

  • IP range

IPv6 is not supported.

To include multiple assets in the same field, enclose the values in double quotation marks, and separate them with commas.
For example, "1.1.1.0/32, 2.2.2.0/34, 3.3.3.0/34, 4.4.4.0/34"

match_on

Defines if the asset_values belongs to the SecureChange user or group when it appears as the source of a firewall rule, the destination, or both.

Can be one of the following:

  • `source`

  • `destination`

  • `source, destination`

objects

An object name registered in SecureTrack, which can be assigned to an owner.

  • If the object name does not match an object in SecureTrack, RLM ignores the entire row during import.

  • All IPs contained in the object are assigned to the owner.

  • If the object contains an IPv6 asset, RLM assigns it successfully.

  • Limitations related to FQDNs and Dynamic Objects can cause these objects to be rejected.

services

A protocol or port number.

service_object_names

The name of the protocol and port number in either of these formats:

  • Single port: `protocol:port`

  • Range of ports: `protocol:min_port-max_port`

RLM populates the relevant service information based on the object name during the next automated sync with SecureTrack.
application

Applicable to RLM only.

A custom metadata field used to add notes to the mapping table on the Owners page.
description

Applicable to RLM only.

A custom metadata field used to add notes to the mapping table on the Owners page.

aurora_rule_uids

The Rule UID in SecureTrack, as displayed in Rule Viewer. The Rule UID is a global identifier for rules across the Tufin Orchestration Suite.

You can export rule UIDs using Rule Viewer or the STRE Rule Analytics Report.

File Import Requirements

Before importing the CSV, verify the following:

  • The file includes all column headers.  If at least one column header is missing, RLM rejects the file.
    The order of the column does not matter.

  • Only the owner field must contain a value. The other fields can remain empty.

Import Notifications

After every CSV import, check the RLM Notifications Pane for alerts.

Example files

Here are examples of an Excel file populated with the column headers and teh CSV file that correponds to it.

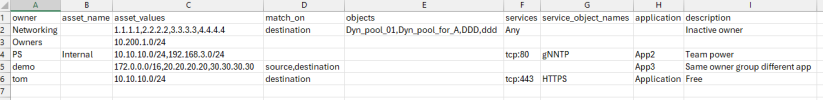

Example Excel

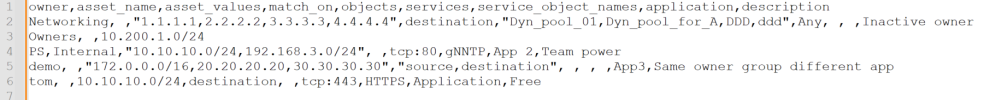

Example CSV output

Excel template for download

Click here to download a sample Excel file template.

Import Owners Using a CSV

Newly imported data overrides data that was previously imported.

Prerequisites

  • Create users in SecureChange for all Rule Owners in RLM.

    • Each user must have User name and Email attributes.

    • The field, Owner, in the RLM mapping template must be an identical match to the field User name.

    For SecureChange login credentials, contact your TOS Administrator.

  • Use either Google Chrome or Mozilla Firefox internet browser for RLM.

  • Configure all relevant users and workflows in SecureChange.

  • Provide SMTP server information if notifications need to be sent.

  • Ensure a list of owners and their associated assets, if available.

Steps

  1. Select Settings > Owners.

    The Owners page appears in the lower section of the page:

  2. From the Actions () list, select Import Owners.

  3. Select the TXT or Excel file with the owner-asset information.

    Depending on the volume of data, the upload may take some time.

  4. Run a scan to update the rules based on the new uploaded data (see Run a Manual Scan).
