Monitoring Amazon AWS Cloud Platform

Overview

TOS Aurora monitors the Amazon AWS cloud platform for policy revision changes.

To see which TOS features are supported for your device, review the feature support table.

Prerequisites

Before you begin, make sure that you have an AWS user that has a policy that has all the permissions you require for the TOS features you will be using.

Feature

AWS Permissions

Visibility and Change Tracking
Read-Only access to EC2, VPC, and Direct Connect, which lets you Retrieve information about instances, Security Groups, VPCs and all relevant networking data, such as subnets, interfaces, routes and table.

AmazonEC2ReadOnlyAccess, AmazonVPCReadOnlyAccess, AWSDirectConnectReadOnlyAccess

Application Discovery

CloudWatchLogsReadOnlyAccess

Routes for Transit Gateways

SearchTransitGatewayRoutes

Provisioning

User must have either:

  • AmazonVPCFullAccess

or create a custom IAM policy with the following permissions:

  • AuthorizeSecurityGroupEgress
  • AuthorizeSecurityGroupIngress
  • RevokeSecurityGroupEgress
  • RevokeSecurityGroupIngress

Cross-Account Access

To use the AssumeRole option, you must have an Amazon Resource Name (ARN) identifier.

For more information, see Amazon AWS AssumeRole Support.

You can assign the policy to the user directly or through a role that it is assigned to. For more about AWS policies or creating a custom IAM policy, see the Amazon AWS documentation. This following is a sample custom IAM policy:

{
  "Version": "2012-10-17",
  "Statement":[
  {
    "Effect":"Allow",
    "Action":[
      "ec2:AuthorizeSecurityGroupEgress",
      "ec2:AuthorizeSecurityGroupIngress",
      "ec2:RevokeSecurityGroupEgress",
      "ec2:RevokeSecurityGroupIngress"
    ],
      "Resource": [
        "arn:aws:ec2:*"
      ]
    }
  ]
}

Automatic Import of VPCs

When you select Automatic Import of VPCs, SecureTrack automatically detects changes to the AWS environment (adding, deleting, and editing VPCs) and reflects them in the device list and revision history. Changes to the VPCs will be reflected in the Interactive Map when a scheduled sync occurs or when you click Sync in the Interactive Map.

With Automatic Import enabled, devices that have been deleted from the AWS are automatically deleted from the list of devices in SecureTrack and their history will no longer be available. Therefore, if your continuous integration/continuous deployment (CICD) pipeline regenerates VPCs, the history of the deleted VPC will not be available in the new replacement VPC. To retain revision data in SecureTrack for devices that have been deleted from your Amazon account, use manual import.

There is a limit to the number of VPCs that can be supported for Automatic Import, depending on your TOS deployment. For more information, contact Tufin Customer Support.

Add a Device

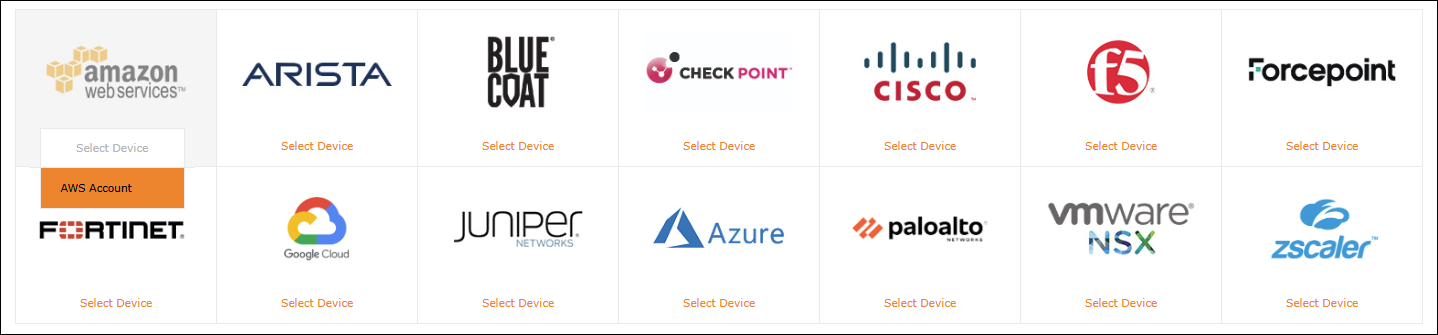

  1. Select Amazon > EC2:

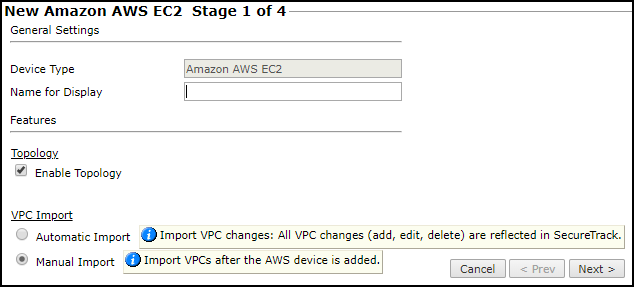

  2. Configure the device settings:

    • Name for Display

    • Domain: Available only if you have configured your system for managing multi-domains and All Domains is currently selected. Select the domain to which to add the device. The Domain can only be entered when adding a device; to change the Domain, you must migrate the device.

    • ST server: In a distributed deployment, the AWS parent device and its VPCs must be monitored by the same cluster(not shown in image).
    • Features >Enable Topology: Collects routing information for building the network Interactive Map.
      Topology options for Advanced management mode are configured when you import managed devices.

    • Features > VPC Import:

      • Automatic Import: For a given AWS account, automatically detect deleted VPCs and add new VPCs in SecureTrack.
      • Manual Import: Import VPCs after the AWS device is added.
  3. Click Next.

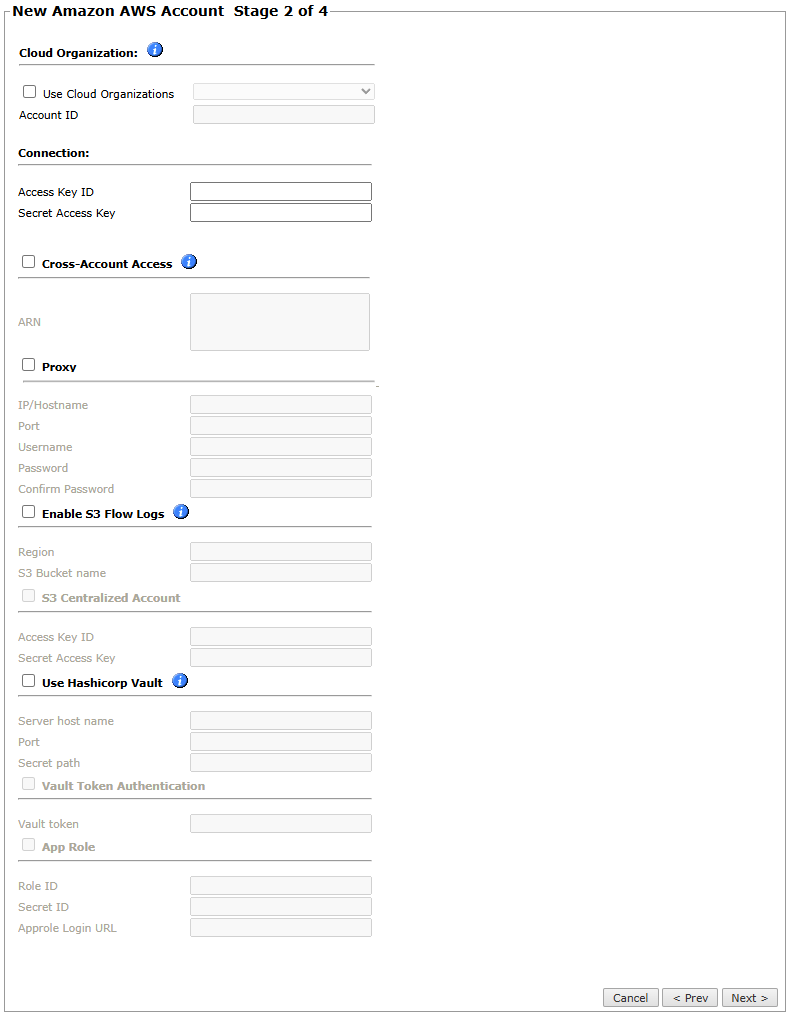

  4. Configure the SecureTrack connection to the Amazon AWS device, according to the parameters required by the device:

    1. Enter the Access Key ID and the Secret Access Key.

      You can get the access keys from the AWS Identity and Access Management (IAM) console.

    2. For Cross-Account Access, enter an Amazon Resource Name (ARN) identifier to use the AssumeRole permissions.

      This allows you to request temporary security credentials to make AWS requests for the account configuration information that is not available by default, and to access VPCs that are not part of your Account configuration.

      For more information, see Amazon AWS AssumeRole Support.

    3. Proxy: Select this option if you connect to AWS through a proxy which requires authentication. Enter the proxy details:

      • IP address or Hostname of the proxy
      • Port that you connect to on the proxy
      • Username to use for authentication
      • Password (and password confirmation) to use for authentication
      • Confirm Password

      If SSL decryption is enabled on the Proxy server and applied to the traffic from SecureTrack to AWS, you must configure a white list on the proxy server. The white list allows the traffic from SecureTrack to bypass SSL decryption and authentication.

    4. Use Hashicorp Vault: Select this option if you use Hashicorp Vault to store your AWS authentication credentials.

      When storing AWS authentication credentials in Hashicorp vault, use the KV secret engine.
      • Server host name: Name of the server used to host the Hashicorp Vault.
      • Port: TCP / UDP port that SecureTrack uses to communicate with the Hashicorp Vault.
      • Secret path: Path to the AWS authentication details within the Hashicorp Vault.
      On the Hashicorp Vault server, configure the following key-value pairs, which SecureTrack expects to retrieve:

      Key

      Value

      access_key_id<Access Key ID>
      secret_access_key<Secret Access Key>

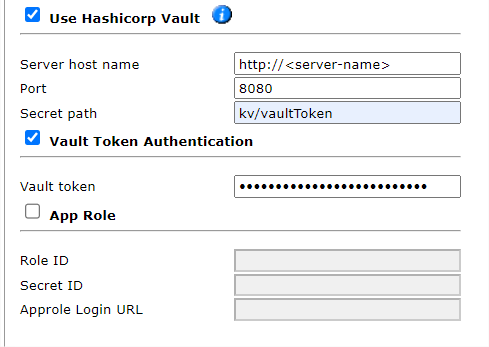

    5. Select either Vault Token Authentication or App Role:
      • Vault Token Authentication: Select this option to add the Vault token. This token is required for SecureTrack to authenticate AWS using the Hashicorp Vault.

        For example:

      • App Role: Select this option to add the App Role fields:

        • Role ID: Vault server RoleID that SecureTrack uses to authenticate the Hashicorp Vault server.

        • Secret ID: Hashicorp Vault server SecretID that SecureTrack uses to authenticate the Hashicorp Vault server.

        • Approle Login URL: Path to AppRole login details within the Hashicorp Vault.

          For example:

      6. Tufin does not support using the Hashicorp Vault with a proxy or Cross-Account Access (ARN).
    6. Click Next.

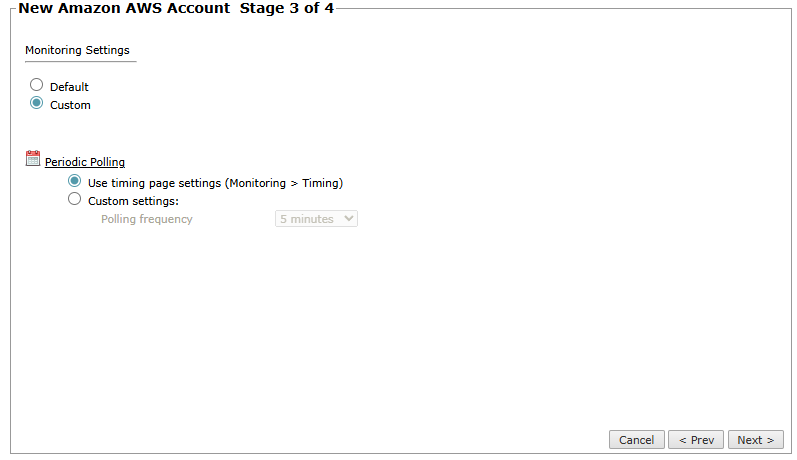

      The Monitoring Settings page appears:

  5. Choose between Default and Custom monitoring settings.

    For Custom, set the polling frequency (how often SecureTrack retrieves the configuration from each device).

    Choose from:

    • Use timing page settings: See Setting Timing for Monitoring.

    • Custom settings: From the drop-down list, set the polling frequency.

      • If you select 1 day, you can then select the exact time (hour and minute) for the daily polling.

  6. Click Next.
  7. Save the configuration.

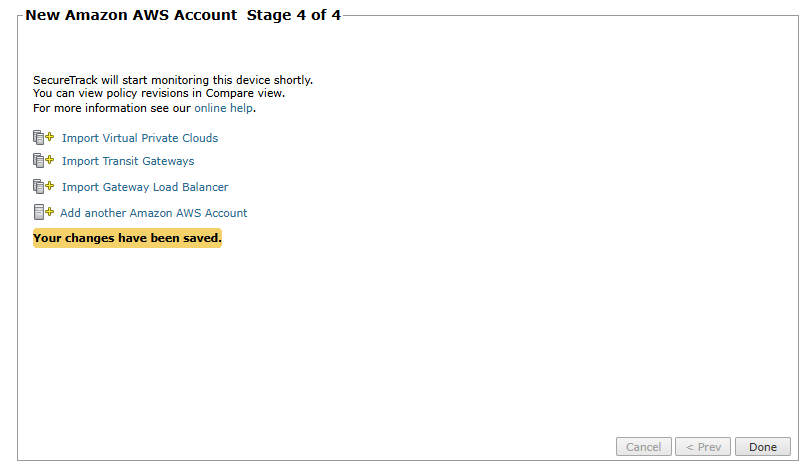

  8. You can now do one of the following:

  9. Click Done.

    10. The Amazon AWS device now appears in the Monitored Devices list.

Configure a Monitored Device

After you add a device, further configuration options are available.

Options vary depending on your environment.

Example:

  • Edit configuration: Use the wizard to modify selected device settings. See Add a Device in this topic.

  • Delete this device: Type yes to confirm that you want to delete the device.

  • Import Virtual Private Clouds: Select the Virtual Private Clouds to be added.

  • Import Transit Gateways: Select the Transit Gateways to import. In multi-domain deployments, select the domain for each Transit Gateway.

  • Migrate (ST servers): Available in distributed deployments. Select the server where the device will be monitored and click Migrate.

  • Migrate (Domains): Available in multi-domain deployments. Select the domain where the device will be monitored and click Migrate.

How Do I Get Here?

SecureTrack > Monitoring > Manage Devices
