TufinMate for IT User Guide

Overview

TufinMate's command syntax is flexible, allowing you to speak naturally as you request details regarding access flows and devices in your environment. You can also request PDF reports and open SecureChange tickets.

This user guide is organized by query type and takes you through the best practices for interacting with TufinMate successfully and efficiently.

Access Related Questions

TufinMate can tell you whether access is permitted between two end points in your network. It considers whether the access uses a specific port or service to traverse the path. Supported end point formats include lone IP addresses, subnets or CIDR blocks, and FQDNs.

The following table includes some examples of supported question formats.

Sample Question Formats

Access type	Sample query
IP to IP via a specific service	Can 10.11.1.111 access 10.22.2.222 using https?
IP to IP via a specific service - policy path	Find the policy path between the source IP 100.100.0.1, destination IP 10.0.0.2, and service HTTP
Subnet to the internet via a specific service	Can 111.123.3.0/24 access 8.8.8.8 using https?
IP to FQDN via a specific protocol and port	Can you tell me if 12.123.123.1 can access dns.google.com via tcp:53?
Subnet to subnet	Show me the traffic between 10.100.1.0/24 and 10.100.99.0/24.

Generate PDF Topology Report

TufinMate generates PDF reports detailing access flows from your topology.

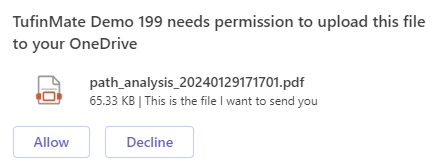

After requesting a PDF report, you will be prompted to allow the file to be uploaded to your OneDrive:

Click Allow to continue.

The file is sent to the OneDrive account associated with your user name. It will not be shared with anyone else in your organization.

You can request a report for any query supported in Access-Related Questions.

Sample Question Formats

Report type	Sample query
Path from source to destination via a service	pdf for source IP 1.1.1.0/24 and destination IP 192.100.10.0/24 via https
Path described in a previous query	After asking an Access-Related Question, type pdf or create pdf to see a report of the access details.

View Devices on a Path

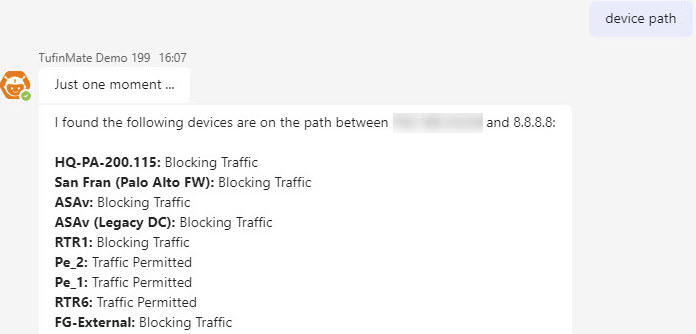

TufinMate shows you which firewalls exist on the path between a given source and destination. You can view these devices for any query supported in Access-Related Questions.

Sample Question Formats

Query type	Sample query
Devices between a source and destination via a service	device path between 10.19.1.100 and 10.20.1.100 using https?
Device path based on a previous query	After asking an Access-Related Question, type device path.

Open a SecureChange Ticket

If an access path is blocked, you can ask TufinMate to open a SecureChange ticket to open it. TufinMate will use your identity to populate the ‘Requester’ field of the ticket.

Restrictions

• TufinMate requires you to have a SecureChange account before opening a ticket on your behalf.

• To prevent the creation of redundant policies or rules, TufinMate informs you when another user has already requested the access flow you want to open.

• TufinMate will not provide another user’s access request ticket details, even if they relate to the flow you asked about. To see those details, view the request from SecureChange's Requests page.

Sample Question Formats

SecureChange ticket type	Sample query
Open access between two subnets via a service	Allow traffic from 111.111.111.0/24 to 111.222.11.0/24 via service, tcp2.
Open access between two subnets via any service	Allow any service from 111.111.111.0/24 to 111.222.11.0/24.
Open access between two subnets via any service - alternative phrasing	Open a ticket to allow access between 111.111.111.0/24 and 111.222.11.0/24.

Check the Status of a Ticket

After creating a ticket, you can ask TufinMate to check its status.

Sample Question Formats

Query type	Sample query
Learn ticket status via ticket ID	Status for ticket 1259

Known Limitations

Limitation Area	Description
Internet objects	TufinMate can't parse the word "internet." When referring to the internet, use a proxy like "8.8.8.8." For example: Can this asset access 8.8.8.8?
IPv6 addresses	IPv6 addresses are not supported.
